Module, Integrated Center Stack Screen: Description: Description

WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

There are two different Integrate Center Stack (ICS) Screen Modules in the vehicle, a 4.3 inch (Base) and 8.4 inch (Mid). The ICS screens are located in the center of the instrument panel.

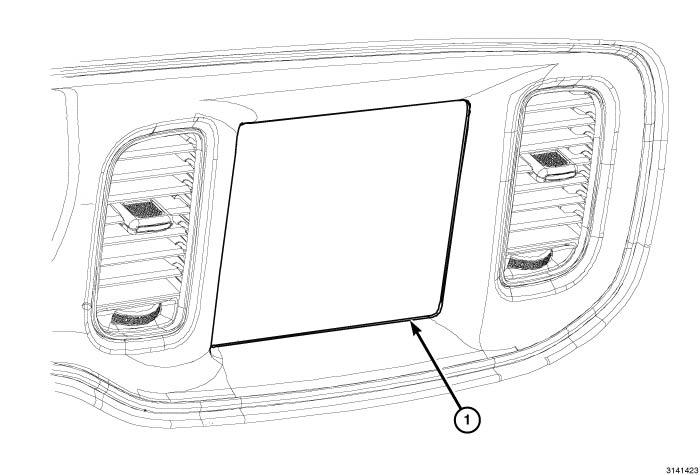

Fig 1: Full Touch Screen

Courtesy of CHRYSLER GROUP, LLC

The 8.4 inch (mid) (1) is a full touch screen for audio system and HVAC operations.

Fig 2: 4.3 Inch (Base) Touch Screen

Courtesy of CHRYSLER GROUP, LLC

The 4.3 inch (base) is a touch screen used in combination with hard keys for audio system and HVAC operations.
