Case Assembly, Differential: Assembly: Assembly

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

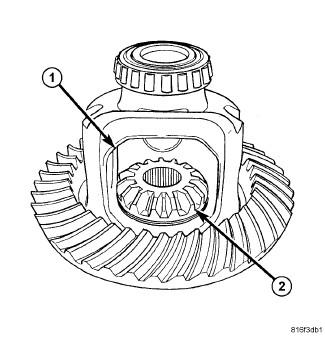

Fig 1: Side Gear

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If same gears and thrust washers are being used, install them into their original locations.

Lubricate all differential components with axle lubricant.
Install differential side gears (2) and thrust washers through differential window (1).

Fig 2: Pinion Gear
Courtesy of CHRYSLER GROUP, LLC
Install first pinion gear (3) with thrust washer into differential window (1) and side gears (2). Rotate pinion gear into the case.

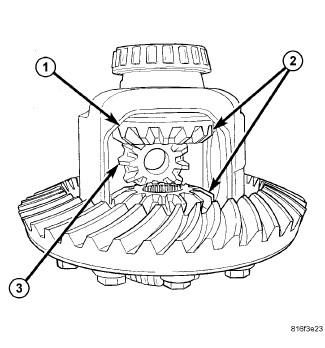

Fig 3: First Pinion Gear
Courtesy of CHRYSLER GROUP, LLC
Install remaining pinion gear (2) and thrust washer (3). Rotate gears to align hole in the pinion gears with hole in the differential case.

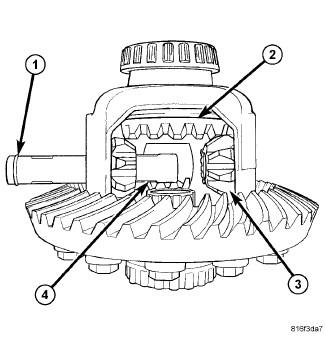

Fig 4: Pinion Mate Shaft
Courtesy of CHRYSLER GROUP, LLC
Slide pinion shaft (1) into the case and through the pinion gears (3) to align the gears.
