Sensor, Ambient Temperature: Installation: Installation

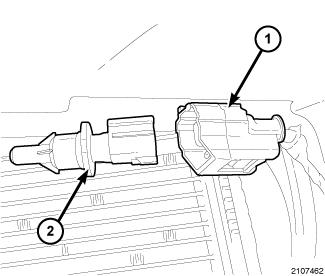

Fig 1: Identifying Ambient Temperature Sensor & Wire Harness Connector

Courtesy of CHRYSLER GROUP, LLC

1. Connect the wire harness connector (1) to the ambient temperature sensor (2).
2. Position the ambient temperature sensor in the vehicle.
3. Install the push pin type retainer that secures the ambient temperature sensor to the lower left side of the front bumper.
4. Connect the battery negative cable.
