Section 38 (Overhead Console (Service Information)): Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

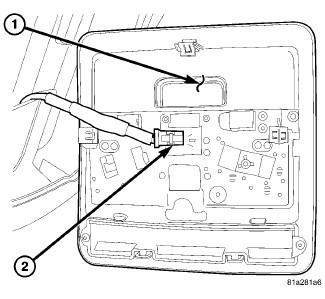

- Position the overhead console (1) in the vehicle near the headliner assembly.
- If equipped, connect the courtesy lamps, infrared temperature sensor and power sunroof switch electrical connectors (2).
- Grasp the sides of the overhead console (2) and push straight up evenly to engage the three snap clips (1) into the mounting bracket.
- Connect the battery negative cable.
