Switch, Lumbar Control: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Driver seat shown in illustration. Passenger seat similar.

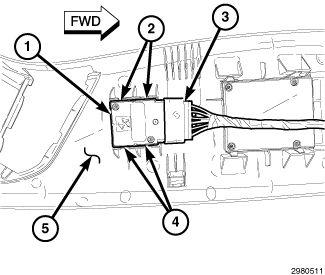

GC0144603Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connector (3) to the power lumbar control switch (1).
  2. Position the lumbar control switch to the seat cushion side trim panel (5) and engage the four retaining tabs (2 and 4).

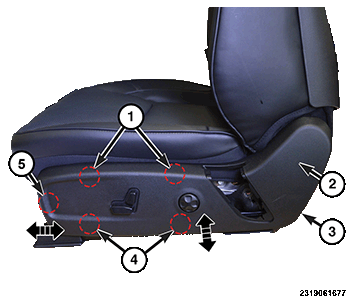

    GC0170810Courtesy of CHRYSLER GROUP, LLC
  3. Position the side shield (2) slightly forward and push down to engage the top retaining clips (1), then push rearward to engage the front retaining clip (5).
  4. Push at the bottom to engage the retaining clips (4).
  5. Install the screw (3) at the back of the side shield. Tighten the screw securely.
  6. Fasten the lower straps for the seat back panel.
  7. Install the trim cover over the seat belt anchor.
  8. Connect the negative battery cable.
  9. Verify proper power lumbar support operation.
