Damper, Vibration: Installation: Installation

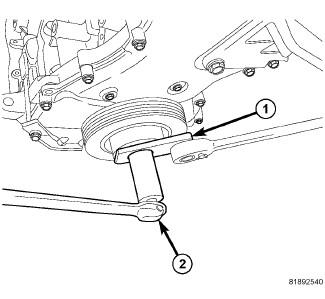

Fig 1: Removing/Installing Damper Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Install crankshaft damper.
2. Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 N.m (155 ft. lbs.).
3. Install accessory drive belts. Refer to BELT, SERPENTINE, INSTALLATION .
