Sensor, Air Temperature, Inlet: Installation: 5.7L
WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

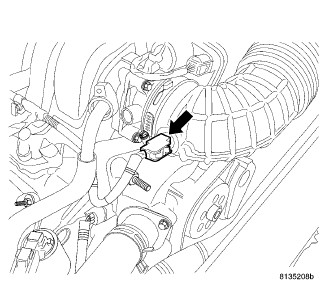

- Press sensor into rubber air hose.

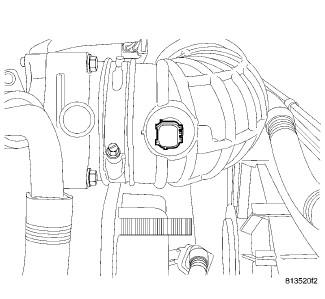

- Rotate sensor into position as shown in illustration. For proper system operation, sensor must be positioned as shown in illustration.
- Connect electrical connector to sensor.
