No Response From SCCM (Steering Column Control Module): Notes

WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to SYSTEM WIRING DIAGRAMS article .

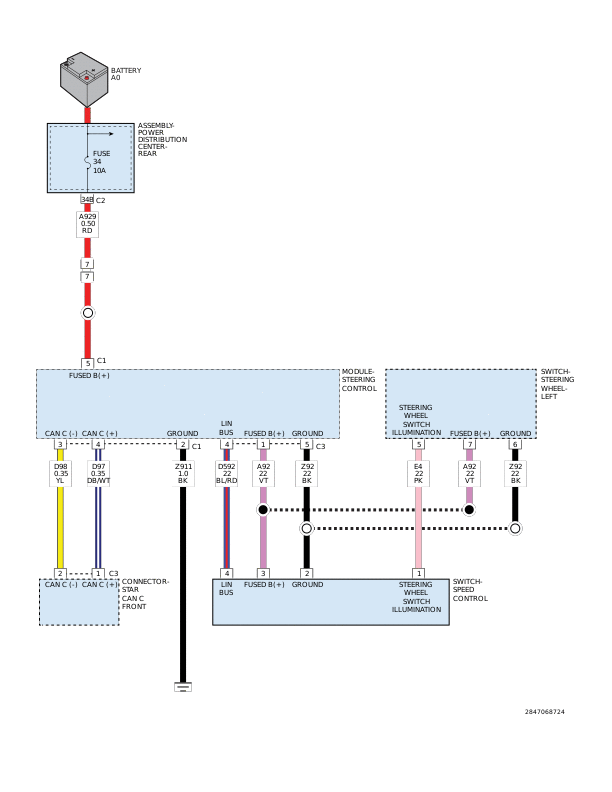

Fig 1: Steering Column Control Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
