No Response From TCM (Transmission Control Module) 8-Speed: Notes

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

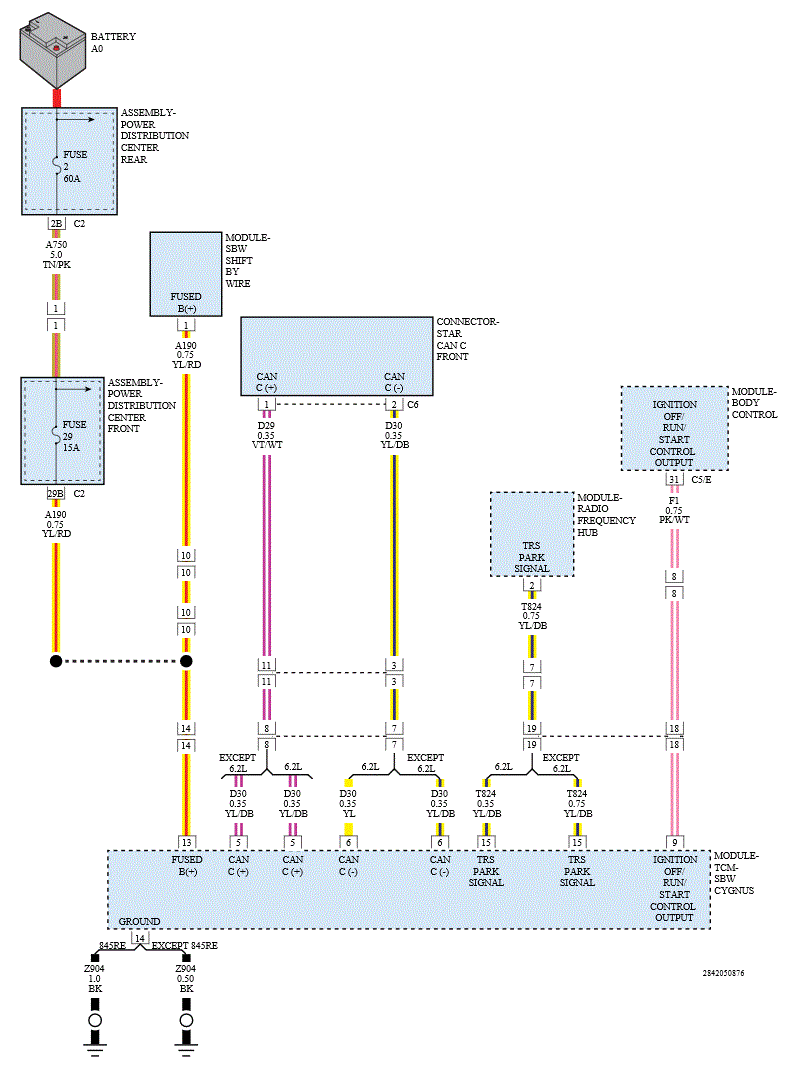

Fig 1: Transmission Control Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
