Engine Block: FLEXPLATE: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

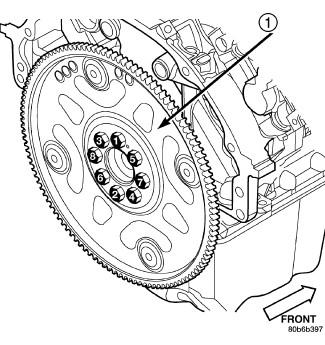

- Position the flexplate (1) onto the crankshaft and install the bolts hand tight.
- Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown in illustration
.
- Install the transmission.
