COVER(S), Engine Timing: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

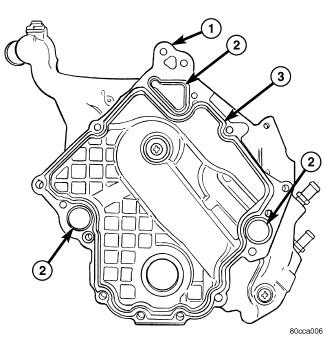

| 1 - TIMING CHAIN COVER |
| 2 - WATER PASSAGE O-RING |
| 3 - MOPAR® ENGINE RTV SEALER |
CAUTION:
Do not use oil based liquids to clean timing cover or block surfaces. Use only rubbing alcohol, along with plastic or wooden scrapers. Use no wire brushes or abrasive wheels or metal scrapers, or damage to surfaces could result.
- Clean timing chain cover and block surface using rubbing alcohol.CAUTION: The 3.7L uses a special anaerobic sealer instead of a gasket to seal the timing cover to the engine block, from the factory. For service repairs, Mopar® Grey Engine RTV must be used as a substitute.
- Inspect the water passage o-rings for any damage, and replace as necessary.
- Apply Mopar® Grey Engine RTV sealer (3) to the front cover following the path below, using a 3 to 4 mm thick bead .

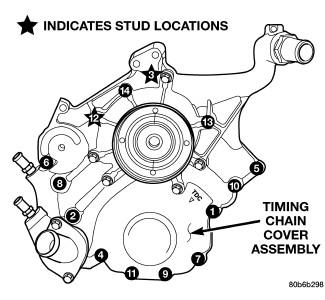

- Install cover. Tighten flange head fasteners in sequence shown in illustration to 58 N.m (43 ft. lbs.).
- Install crankshaft damper. See Engine/Engine Block/DAMPER, Vibration - Installation .
- Install the A/C compressor. Refer to Heating and Air Conditioning/Plumbing/COMPRESSOR, A/C - Installation .
- Install the generator. Refer to Electrical/Charging/GENERATOR - Installation .
- Install accessory drive belt tensioner assembly. Refer to Cooling/Accessory Drive/TENSIONER, Belt - Installation .
- Install radiator upper and lower hoses.
- Install both heater hoses.
- Install electric fan shroud and viscous fan drive assembly.
- Fill cooling system. Refer to Cooling - Standard Procedure .
- Connect the battery negative cable.
