Section 527 (Charging System (Service Information)): Generator: Installation: 6.2L
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

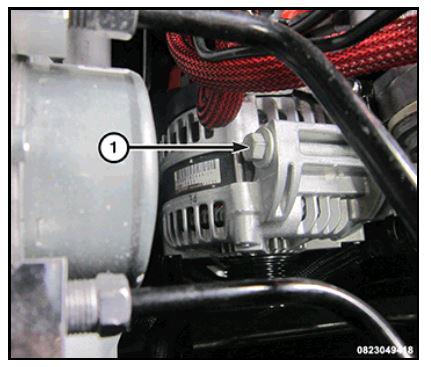

- 1. Position the generator and install the two upper generator retaining bolts (1) finger tight.

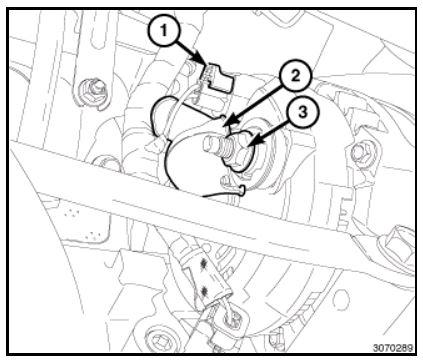

- Position the generator B+ terminal eyelet to the generator output stud, install the retaining nut (3) and tighten to the proper specification. Refer to: TORQUE SPECIFICATIONS .
- Install the insulator cover (2) onto the B+ output terminal.
- Snap the field wire connector (1) into the rear of the generator.

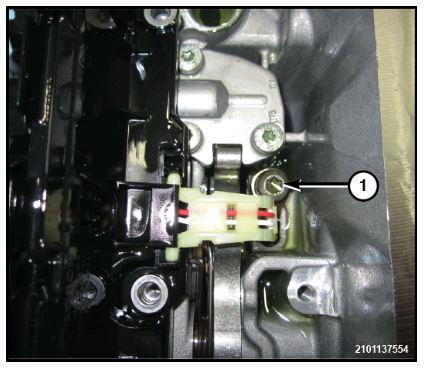

- Install and tighten the lower retaining bolt (1) to the proper (Torque Specifications) .

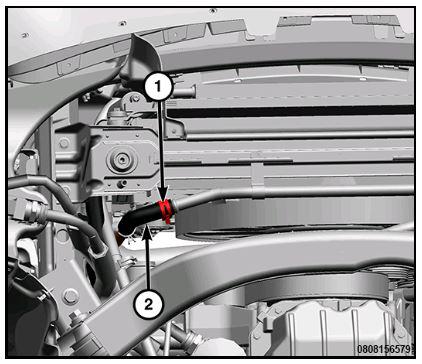

- Connect the coolant hose (2) and install the coolant hose clamp (1).

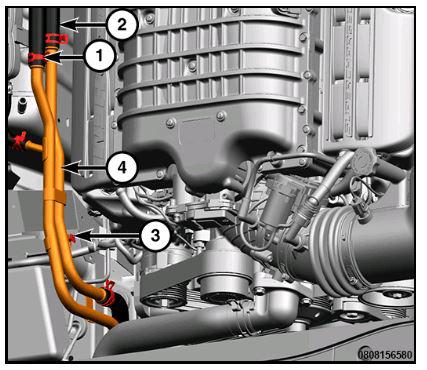

- Position the coolant pipe (4) and install the pushpin (3).
- Connect the coolant hoses (2).
- 9. Install the coolant hose clamps (1).
- Install and tighten the generator upper retaining bolts to the proper (Torque Specifications) . CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat.
CAUTION:: Do not let the tensioner arm snap back to the freearm position, severe damage may occur to the tensioner.
- Install the belly pan. Refer to: BELLY PAN, INSTALLATION .
- Install the serpentine belt. Refer to: SERPENTINE BELT INSTALLATION, 6.2L .
- Connect the negative battery cable and tighten the nut to the proper. Refer to: TORQUE SPECIFICATIONS .
- 14. Fill the low temperature cooling system. Refer to: ADDING ADDITIONAL COOLANT .
