Insulator, Engine Mount, Right: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
GC0144418Courtesy of CHRYSLER GROUP, LLC
  1. If removed, connect the Crankshaft Position (CKP) sensor wire harness connector (3).
  2. If removed, fasten the CKP main wire harness retainer (1) to the engine block and one main wire harness retainer (2) to the right engine mount bracket.

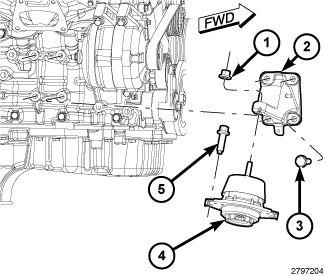

    GC0144304Courtesy of CHRYSLER GROUP, LLC
  3. If removed, position the right engine mount bracket (2), install the four retaining bolts (5) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  4. Position the right engine mount isolator (4) stud into the bracket, align the tab on the isolator with the notch in the engine mount bracket, install the retaining nut (1) finger tight.
  5. Lower the screw jack until both engine mount isolators are in position.
  6. Install the both left and right engine mount isolator to frame bolts (3) finger tight.
  7. Lower the engine so the weight is resting on the isolators and remove the screw jack.
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  8. Install the belly pan and retainers (1).
  9. Remove support and lower the vehicle.

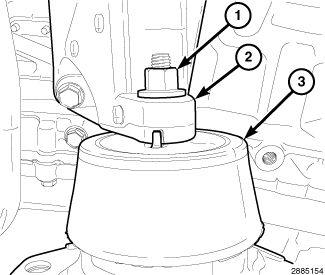

    GC0144470Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left engine mount shown in illustration, right engine mount similar.

  10. Tighten the right engine mount isolator (3) upper retaining nut (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0144614Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left engine mount shown in illustration, right engine mount similar.

  11. Tighten both left and right engine mount isolator to frame bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  12. Position the right engine mount isolator heat shield (4), install the retaining nuts and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0144029Courtesy of CHRYSLER GROUP, LLC
  13. Position the air inlet hose assembly (5) onto the throttle body and the air cleaner housing.
  14. Secure the air inlet hose assembly retaining grommet onto the ball stud (4).
  15. Tighten the clamp at the air cleaner housing (3) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  16. Tighten the clamp (2) at the throttle body to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  17. Connect the Inlet Air Temperature (IAT) sensor wire harness connector (1).
    GC0144028Courtesy of CHRYSLER GROUP, LLC
  18. Position the engine cover (1) and secure the retaining grommets onto the ball studs.
  19. Connect the negative battery cable.
