CROSSMEMBER, Transmission: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

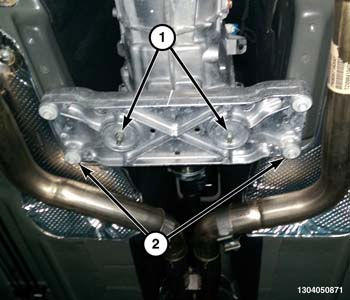

GC0162383Courtesy of CHRYSLER GROUP, LLC

Manual Transmission

  1. Install the crossmember and install the bolts (2) and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Install the mount fasteners (1) and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Remove the transmission support.

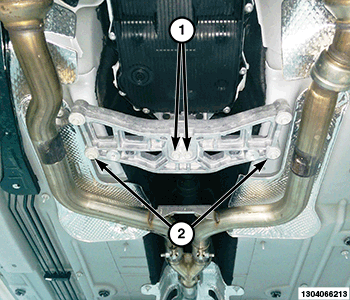

GC0170564Courtesy of CHRYSLER GROUP, LLC

Automatic Transmission

  1. Install the crossmember and install the bolts (2) and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Install the mount fasteners (1) and tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Remove the transmission support.
