Section 717 (Audio/Video/Entertainment/Connectivity (Service Information)): Amplifier: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- If the audio power amplifier is being replaced with a new unit, transfer the fasteners from the old amplifier to the new one.

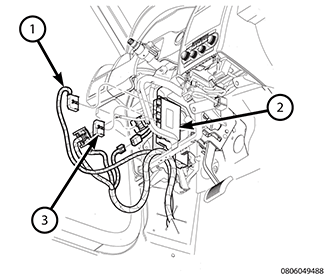

- Position the amplifier (2) to the vertical bracket of the support structure under the instrument panel.
- Engage the fasteners that secure the amplifier into the keyed holes of the instrument panel support structure.
- Tighten the fasteners securely.
- Connect the wire harness connectors (1, 3) to the amplifier.
- If equipped, install the Transmission Control Module (TCM) onto the instrument panel support structure. Refer to MODULE, TRANSMISSION CONTROL (TCM), INSTALLATION .
- Install the steering column opening cover onto the instrument panel. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
