Cover, Structural Dust: Removal
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.

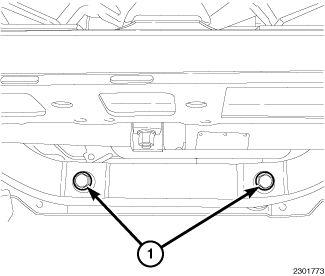

- Remove the steering rack to frame mounting bolts (1) and lower the steering rack enough to gain clearance for the structural dust cover removal.

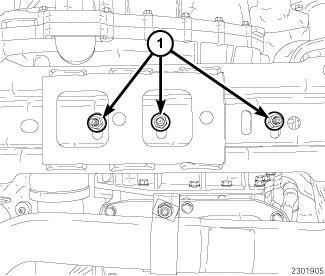

- Remove the transmission mount to crossmember retaining nuts (1).
- Using a suitable jack, lift the transmission enough to gain clearance for the structural dust cover removal.
- Remove the structural dust cover retaining bolts (1, 3 & 4).
- Remove the structural dust cover (2).
