Cover(S), Engine Timing: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a shop towel over the engine oil pan opening to catch any debris created while cleaning the sealing surfaces on the engine block.
  2. Clean the engine timing cover and engine block surface.
    NOTE:

    Always install a NEW  gaskets and seals when servicing the engine timing cover.

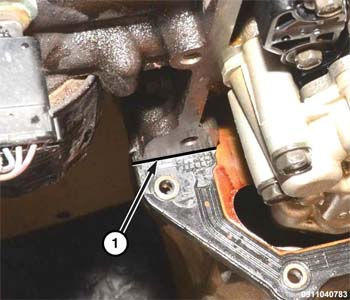

    GC0158215Courtesy of CHRYSLER GROUP, LLC
  3. Apply a small bead of RTV sealant to right edge of the engine block, where the engine block meets the oil pan (1).

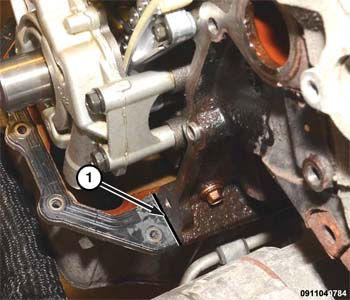

    GC0158241Courtesy of CHRYSLER GROUP, LLC
  4. Apply a small bead of RTV sealant to the left edge of the engine bock, where the engine meets the oil pan (1).
  5. Verify that the engine timing cover slide bushings remain located in the engine timing cover.

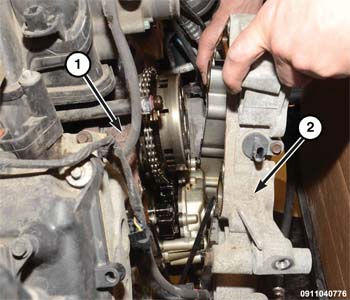

    GC0158243Courtesy of CHRYSLER GROUP, LLC
  6. Using a NEW  gasket, install the engine timing cover (2) to the engine block (1).
    GC0184064Courtesy of CHRYSLER GROUP, LLC
  7. Tighten the timing cover retaining bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0184543Courtesy of CHRYSLER GROUP, LLC
  8. Install the five oil pan to timing cover bolts and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  9. Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
  10. Install the lower radiator hose to the water pump.
  11. Install the generator. Refer to GENERATOR, INSTALLATION .
  12. Install the belt idler pulley. Refer to PULLEY, IDLER, INSTALLATION, 5.7L/6.4L .
  13. Install the belt tensioner. Refer to TENSIONER, BELT, INSTALLATION, 5.7L/6.4L .

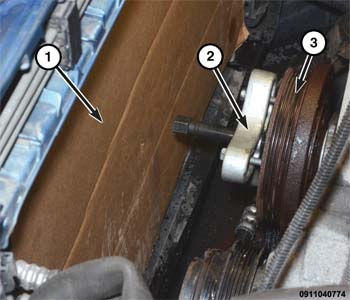

    GC0158227Courtesy of CHRYSLER GROUP, LLC
  14. Install the crankshaft vibration damper (3). Refer to INSTALLATION  .
  15. Remove the protective cover (1) from the radiator face.
  16. Install the cooling fan. Refer to FAN, COOLING, INSTALLATION, 5.7/6.4L SINGLE FAN .
    GC0095240Courtesy of CHRYSLER GROUP, LLC
  17. Connect the Camshaft Position (CMP) sensor wire harness connector (1).
    GC0144611Courtesy of CHRYSLER GROUP, LLC
  18. Install the heater tube (3) into of the water pump.
  19. Install the heater tube bracket bolt located at the rear of the left cylinder head.
  20. Install the heater tube bolt (1) and tighten to 12 N.m (9 ft. lbs.).
  21. Connect the coolant temperature sensor wire harness connector (2).
  22. If equipped, install the power steering pump.
  23. Install the upper radiator hose.
  24. Install the air cleaner assembly. Refer to BODY, AIR CLEANER, INSTALLATION, INSTALLATION  .
  25. Fill the cooling system with the specified type and amount of engine coolant. Refer to STANDARD PROCEDURE .
  26. Connect the negative battery cable.
  27. Change the engine oil filter and fill the crankcase with the specified type and amount of engine oil. Refer to ENGINE/LUBRICATION/OIL - STANDARD PROCEDURE .
  28. Start the engine and check for leaks.
  29. Install the under body shield. Refer to SHIELD, REAR MOUNT, INSTALLATION .
  30. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
