Motor, Window Regulator: Removal
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Partially raise or lower the door glass to relieve tension on motor and cables where possible. Secure the glass as necessary.
- Disconnect and isolate the negative battery cable.
- Remove the door interior trim panel or Refer to PANEL, DOOR TRIM, REMOVAL
. For the appropriate procedure. Refer to PANEL, REAR DOOR TRIM, INSTALLATION
.
- Disconnect the power window motor electrical connector (3) from the motor electrical connector receptacle.
- Remove the three fasteners (2) that secure the power window motor and gear assembly (1) to the carrier plate.

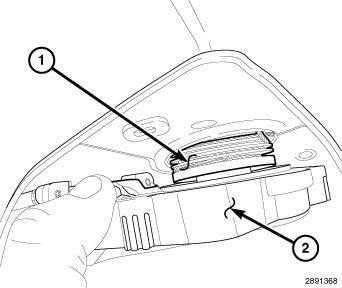

- Using a suitable flat bladed tool, lightly pry the cable drive (1) away from the motor (2) and remove the motor and gear assembly.
