Section 750 (Driveshaft): Description: Front
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

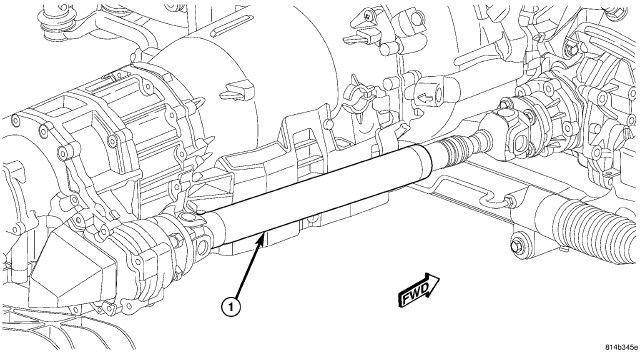

| 1 - FRONT PROPELLER SHAFT ASSEMBLY |
WARNING:
Due to propeller shaft imbalance concerns, front propeller shaft service is limited to rubber coupler and entire shaft replacement. The single-cardan universal joints are not serviceable.
AWD models utilize a "two-piece" front propeller shaft design to transmit torque to the front axle assembly. This two-piece design consists of:
- Front and rear shaft segments
- Single-Cardan u-joints at end flanges
- Rubber boot at front/rear segment interface
