Exhaust Temperature Sensor 1/1

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exhaust Manifold, Gaskets, Turbocharger, Cylinder Head & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Install the exhaust temperature sensor (7) and tighten to 45 N.m (33 ft. lbs.).

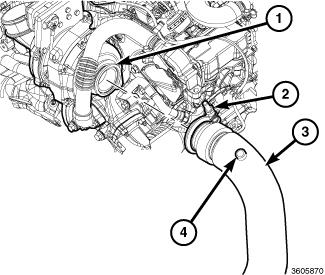

Fig 2: Clamp, Downpipe & Turbocharger Flange
Courtesy of CHRYSLER GROUP, LLC
Align the Diesel Particulate Filter (DPF) pipe to the turbocharger. Tighten the clamp (2) to 25 N.m (18 ft. lbs.)

Fig 3: Oxygen Sensor Connector & Ball Stud Fastener
Courtesy of CHRYSLER GROUP, LLC
Connect the upstream exhaust temperature sensor wire harness connector.
Connect the oxygen sensor wire harness connector (1).

Fig 4: Two Nuts, Air Inlet Duct & Dash Panel
Courtesy of CHRYSLER GROUP, LLC
Install the HVAC air inlet housing (1) and securely tighten nuts.
Install the cowl extension and the side extensions. Refer to COVER, COWL PANEL, INSTALLATION .

Fig 5: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
