Boot, Gearshift: Removal: Removal

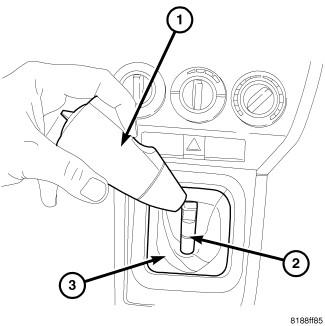

Fig 1: Shifter Knob MT

Courtesy of CHRYSLER GROUP, LLC

1. Firmly pull up on gearshift knob (1) with moderate force to remove from gearshift (2) mechanism.
2. Remove shifter boot/bezel (3) assembly from console by lifting up at mounting ring area.
