Injector(S), Fuel: Removal: Removal

WARNING:

Risk of injury to eyes and skin from contact with fuel. Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked and approved containers. Failure to follow these instructions may result in possible serious or fatal injury.

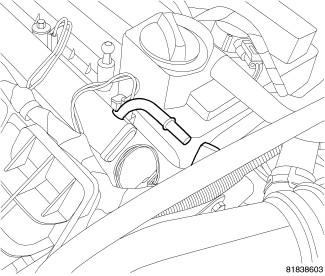

Fig 1: Fuel Injector Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

Release the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
Disconnect the negative battery cable.
Disconnect the electrical connectors from the fuel injectors.

Fig 2: Fuel Line At Rail
Courtesy of CHRYSLER GROUP, LLC
Fuel line connection at fuel rail.

Fig 3: Fuel Line Connection
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel line from the fuel rail.

Fig 4: Wiring Harness Clips
Courtesy of CHRYSLER GROUP, LLC
Remove wire harness from fuel rail mounting studs.

Fig 5: Electrical Harness Removed
Courtesy of CHRYSLER GROUP, LLC
Remove the 2 bolts to the fuel rail at the lower manifold.

Fig 6: Fuel Rail & Injectors
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel rail.

Fig 7: Fuel Injector On Rail
Courtesy of CHRYSLER GROUP, LLC
Remove clip holding fuel injector to fuel rail.

Fig 8: Fuel Injector & Rail
Courtesy of CHRYSLER GROUP, LLC
Remove fuel injector clip and fuel injector from fuel rail.
