Sensor, Camshaft Position: Removal: Removal

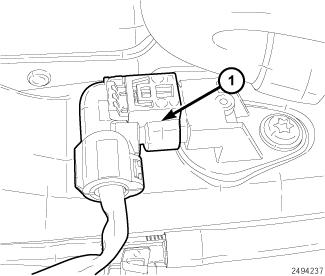

Fig 1: Camshaft Position Sensor Harness Connector

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect negative battery cable.
2. Remove engine cover.
3. Disconnect camshaft position sensor harness connector (1).
   Fig 2: Cam Position Sensor & Retaining Bolt

   Courtesy of CHRYSLER GROUP, LLC
4. Remove retaining bolt and remove the cam position sensor.
