Solenoid Exhaust Gas RECIRCULATION: Installation: Installation

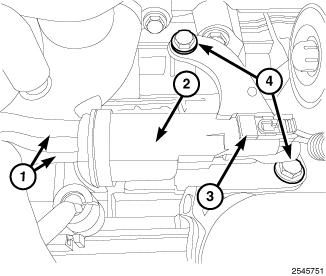

Fig 1: Identifying Vacuum Harness, EGR Solenoid, EGR Solenoid Harness Connector & Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install EGR vacuum solenoid (2) onto the intake manifold. Tighten bolts (4) to 9 N.m (80 in. lbs.).
2. Connect EGR vacuum harness (1) to the EGR solenoid (2).
3. Connect EGR solenoid harness connector (3).
4. Install the engine cover.
5. Connect the negative battery cable.
