B1408-13-Rear Left Audio Speaker Output - Circuit Open - Base: Notes

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

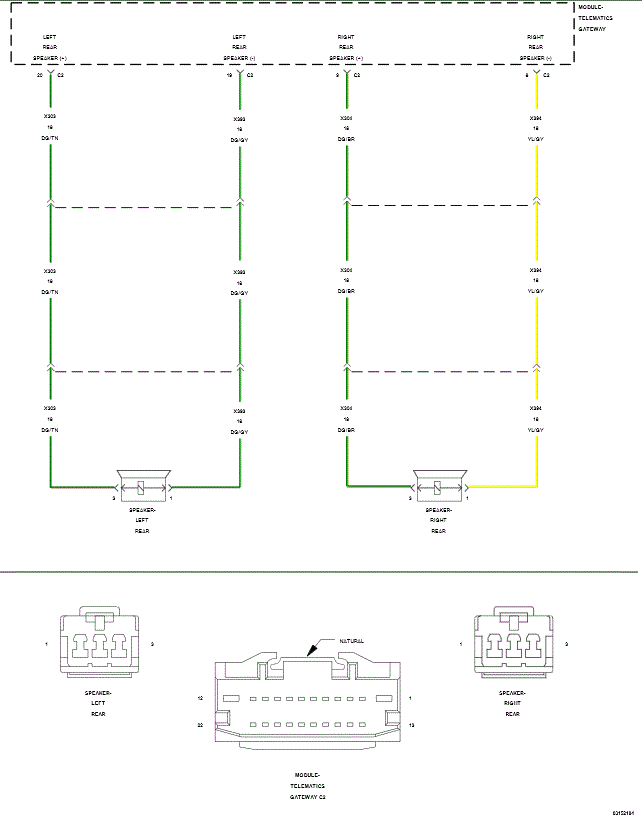

Fig 1: Telematics Gateway Module Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

There are two versions of the B1408-13 DTC test. In order to select the proper test you must know if the vehicle is equipped with an Amplifier. If the vehicle is equipped with an Amplifier use the B1408-13-PREMIUM test. If the vehicle is not equipped with an Amplifier use the B1408-13-BASE test.
