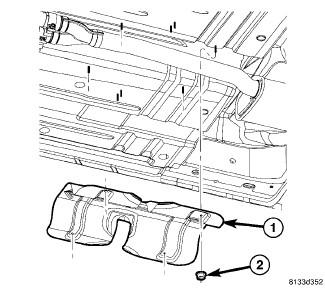

Fig 1: Heat Shields
Courtesy of CHRYSLER GROUP, LLC
1 - HEAT SHIELD
2 - NUT
Position the heat shields (1).
Install the nuts (2). Tighten the nuts (2) to 10 N.m (98 in. lbs.).
