Module, Park Assist: Installation: Installation

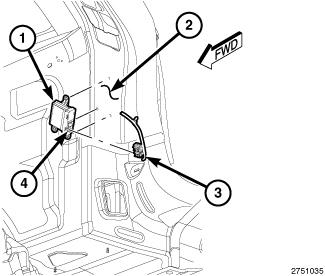

Fig 1: Park Assist Module & Connector

Courtesy of CHRYSLER GROUP, LLC

1. Position the park assist module (1) to the right inner quarter panel (2) and install the fasteners.
2. Connect the body wire harness connector (3) to the module connector receptacle (4). Vehicles with the front park assist option will have a second connection to the module at this location, which must also be reconnected.
3. Install the right quarter interior trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
4. Connect the negative battery cable.
