B1978-00-Power Liftgate Close Direction - Sector Switch Performance: Notes

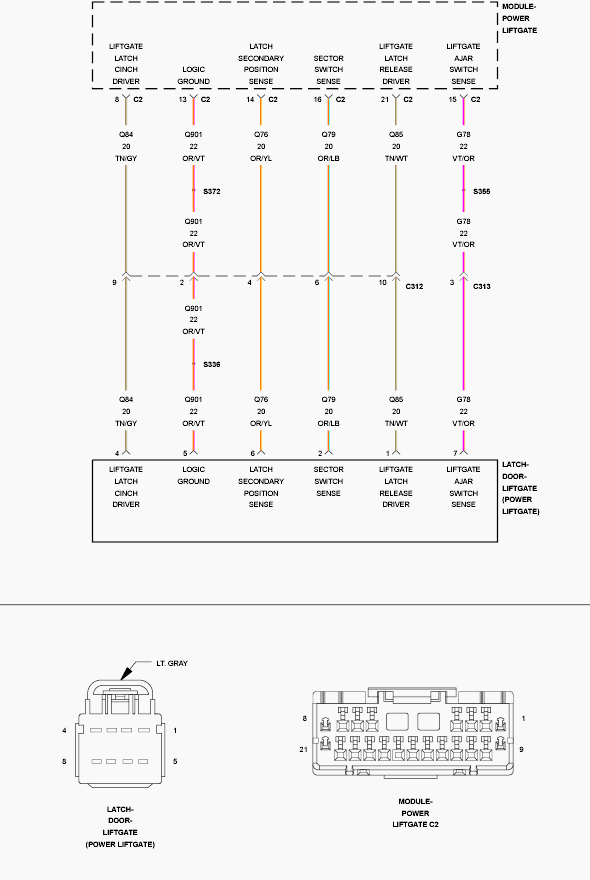

Fig 1: Power Liftgate Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
