P0748-Modulator Pressure Solenoid Circuit: Notes

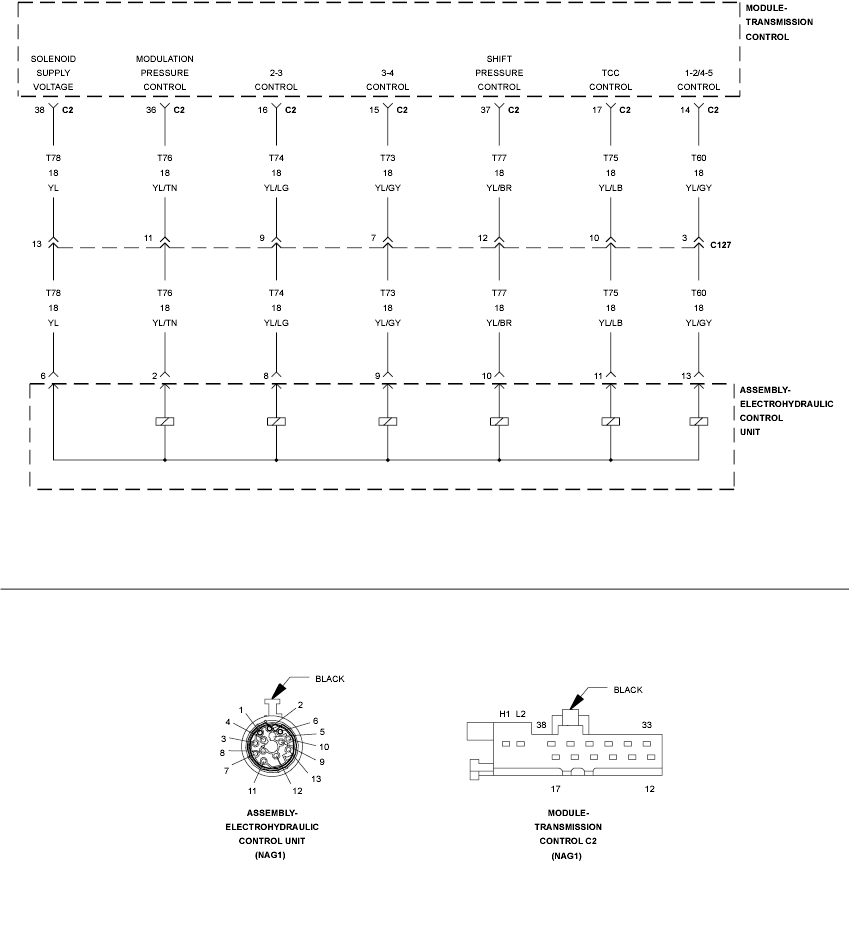

Fig 1: TCM Solenoid Wiring Diagram
GC0102168Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
