Stabilizer Bar, Front: Installation: Installation

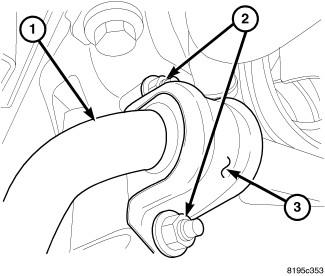

Fig 1: Stabilizer Bar Bracket

Courtesy of CHRYSLER GROUP, LLC

1. Install the stabilizer bar (1) to the vehicle.
2. Install the stabilizer bar bushing brackets (3). Tighten the nuts (2) to 149 N.m (110 ft.lbs.).
   Fig 2: Identifying Stabilizer Bar Link & Bolts

   Courtesy of CHRYSLER GROUP, LLC
3. Install the stabilizer link (1) bolts and bushings at the stabilizer bar. Tighten the bolt to 115 N.m (85 ft.lbs.). with full vehicle weight.
4. Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
5. Lower the vehicle.
