P0121-Throttle Position Sensor 1 Performance: Notes

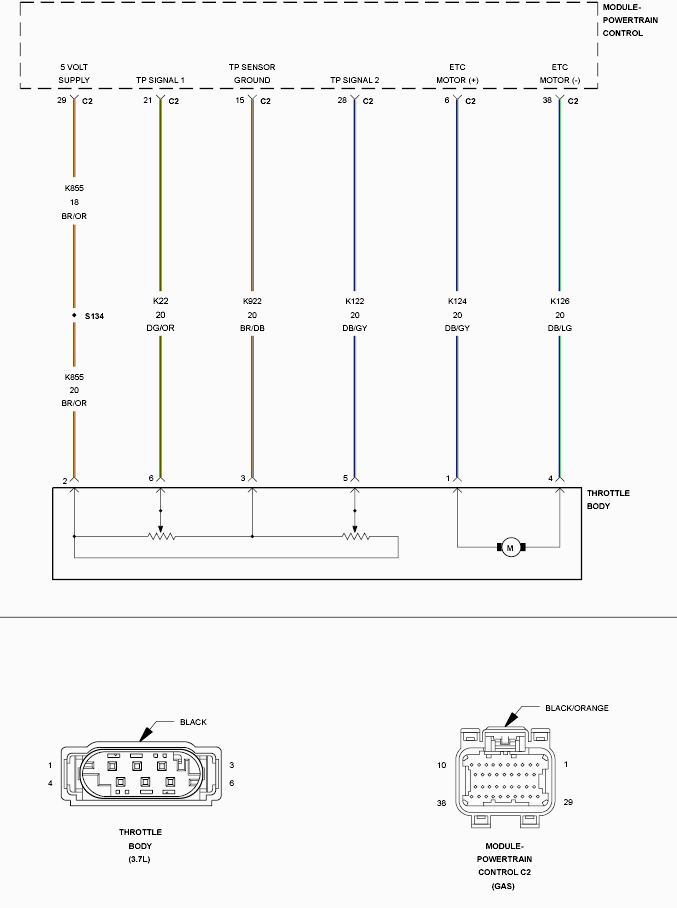

Fig 1: Throttle Position Sensor Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
