P0401-EGR System Performance: Notes

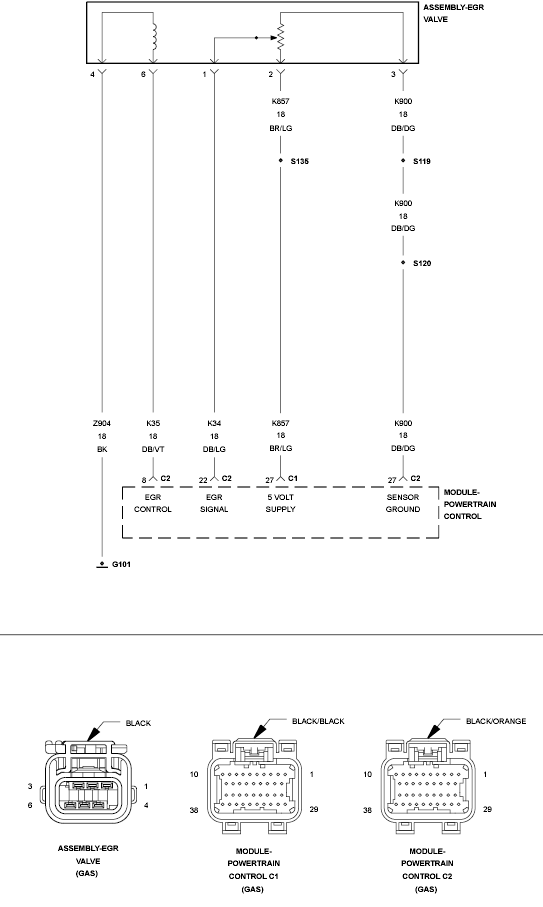

Fig 1: EGR Valve Assembly Circuit Wiring Diagram
GC0101997Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
