P0622-Generator Field Control Circuit: Notes

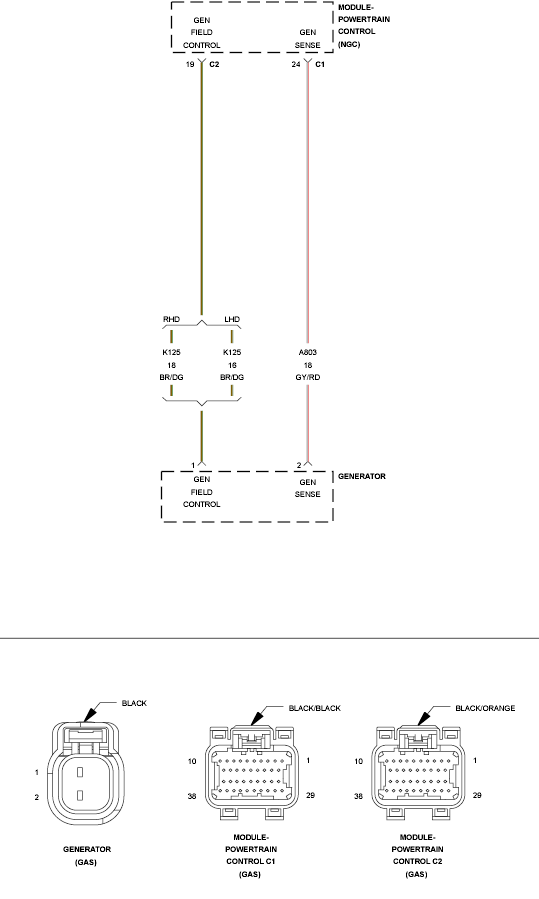

Fig 1: Generator Circuit Wiring Diagram

GC0102028

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article .
