3.7L Engine

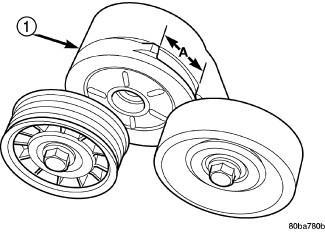

Fig 1: Identifying Automatic Belt Tensioner

Courtesy of CHRYSLER GROUP, LLC

1 - AUTOMATIC TENSIONER ASSEMBLY

Install pulley and pulley bolt to tensioner. Tighten bolt to 61 N.m (45 ft. lbs.) torque.
install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
