3.7L Engine

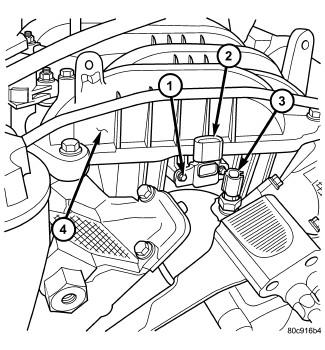

Fig 1: Removing/Installing MAP Sensor/ECT Sensor

GC0083184

Courtesy of CHRYSLER GROUP, LLC

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD

Apply thread sealant to sensor threads.
Install sensor to engine.
Tighten coolant temperature sensor to 11 N.m (8 ft. lbs.) torque.
Replace any lost engine coolant.
