Charging System (Service Information): Generator: Installation: 3.6L

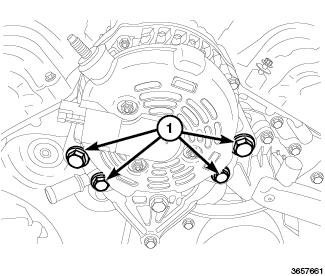

Fig 1: Generator Mounting Retainers

Courtesy of CHRYSLER GROUP, LLC

Install the generator into the vehicle.
Install the generator mounting retainers (1).
Tighten to the top retainers to 54 N.m (43 ft. lbs.)

Tighten to the bottom retainers to 30 N.m (22 ft. lbs.)

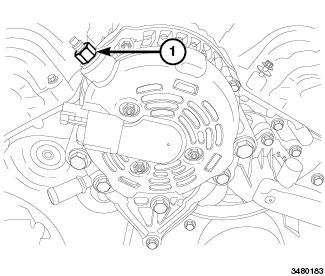

Fig 2: B+ Retainer
Courtesy of CHRYSLER GROUP, LLC
Position back the B+ cable onto the generator stud.
Install the B+ retainer (1).
Tighten to 18 N.m (13 ft. lbs)

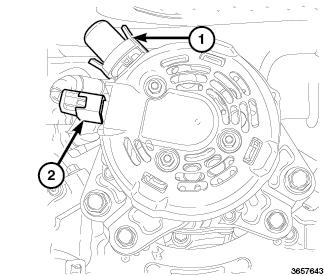

Fig 3: Generator Electrical Connector & B+ Battery Stud Cover
Courtesy of CHRYSLER GROUP, LLC
Install the generator electrical connector (2) and install the B+ battery stud cover (1).

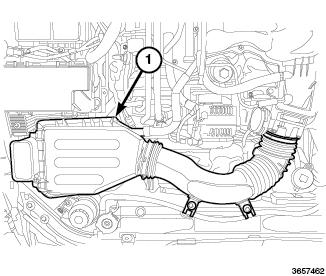

Fig 4: Air Cleaner Body
Courtesy of CHRYSLER GROUP, LLC
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the air cleaner body (1). Refer to AIR CLEANER, INSTALLATION

Fig 5: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover.
Connect the negative battery cable.
Close the hood.
