P0622-Generator Field Control Circuit: Notes

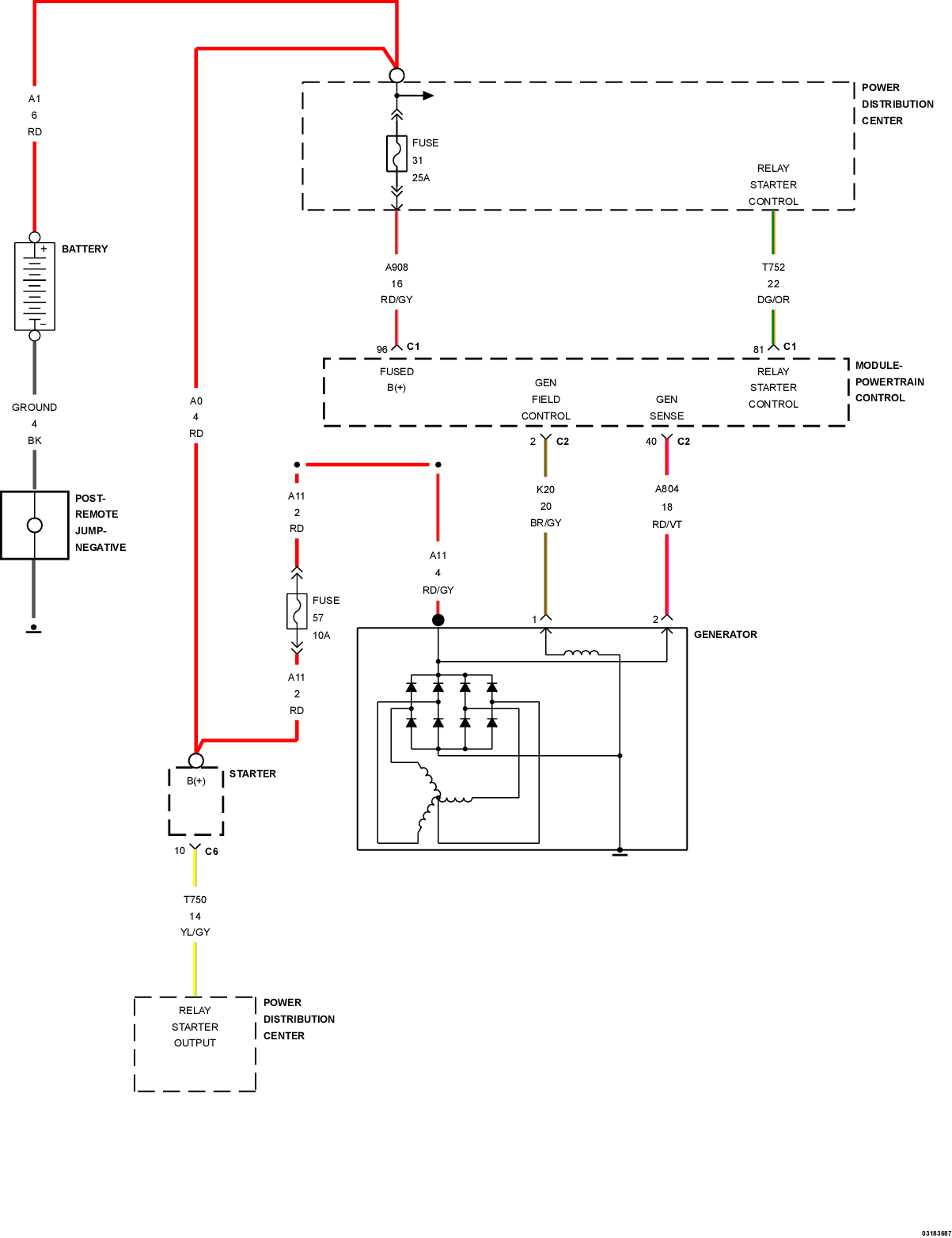

Fig 1: Charging System Power Supply Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
