Sensor, Boost Pressure: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

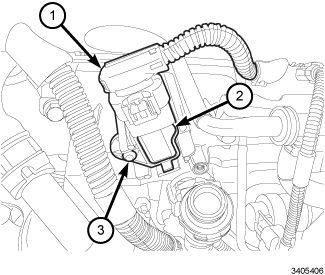

Fig 1: Boost Pressure Sensor, Connector & Bolt

GC0147935

Courtesy of CHRYSLER GROUP, LLC

Install the boost pressure sensor (2) securely tighten bolt (3).
Connect the boost pressure sensor (2) wire harness connector (1).

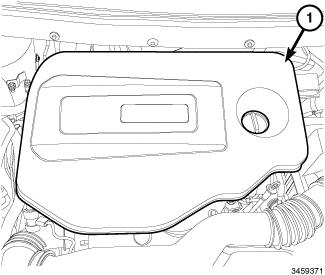

Fig 2: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
