Center, Power Distribution (PDC): Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Position the Power Distribution Center (PDC) into the PDC base in the engine compartment.

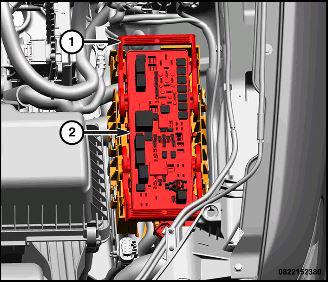

- Connect the bulkhead connectors located in the base of the PDC (2) by pressing doing on the two cam levers (1).

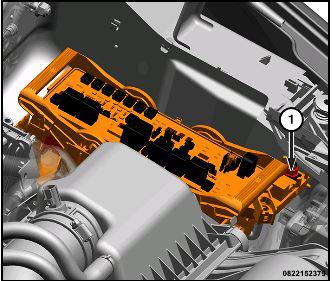

- Connect the positive (+) battery cable and install the fastener (1) to the positive (+) battery cable at PDC and tighten to the proper (Torque Specifications).

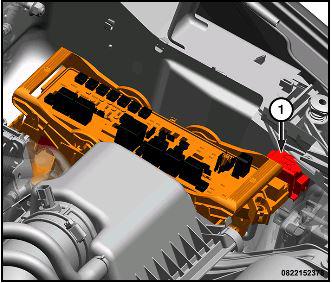

- Install the positive (+) battery cable cover (1).

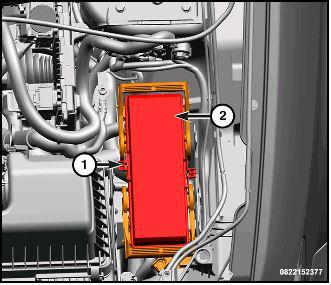

- Install the PDC cover (2) onto the PDC assembly. Verify both locking tabs (1) are securely engaged.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
