Section 14 (Propeller Shaft): Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Propeller shaft installation. Never allow propeller shaft to hang while connected to Power Transfer Unit (PTU), rear driveline module flanges or center bearings. If propeller shaft section is hung unsupported, damage may occur to joint, boot and/or center bearing from over-angulation. This may result in vibration/balance issues. A helper may be needed.
- Make sure transaxle is in Neutral (N) position.
- Raise vehicle on hoist.
- Obtain a helper if needed and lift propeller shaft assembly into position. Install propeller shaft to PTU with mounting bolts and tighten to 30 N.m (22 ft. lbs.).

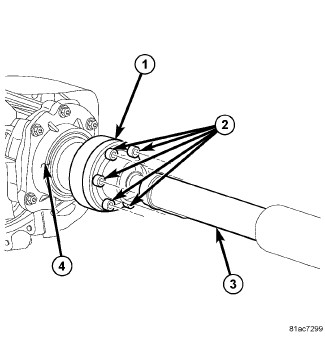

- Align marks (4) on propeller shaft rubber coupler (1) to rear axle input flange (5).
- Install three rear propeller shaft to rear axle retaining bolts (3) and tighten to 58 N.m (43 ft. lbs.).

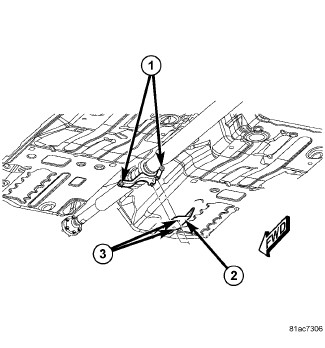

- Raise the center support into position and install mounting bolts (1), tighten bolts to 41 N.m (30 lbs.ft.).
- Install heat shield (2) and retaining nuts tighten to 21 N.m (15 ft. lbs.).
- Lower vehicle.
