Stabilizer Bar, Front: Installation: Switch

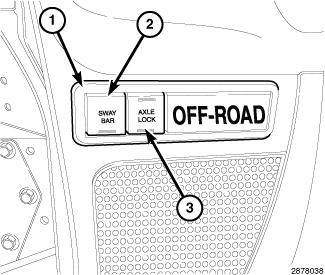

Fig 1: OFF ROAD Switch Pod, SWAY BAR Switch & AXLE LOCK Switch

Courtesy of CHRYSLER GROUP, LLC

1. Press the switch pod (1) firmly into the instrument panel opening making sure the retaining tabs seat properly.

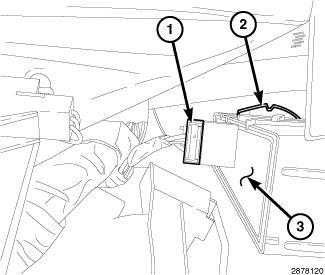

   Fig 2: Electrical Connector & Retaining Tabs

   Courtesy of CHRYSLER GROUP, LLC
2. Attach the electrical connector (1).

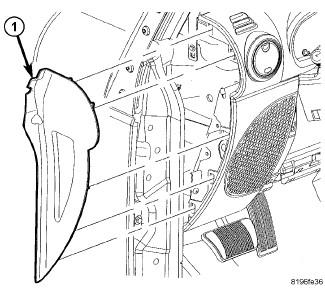

   Fig 3: End Cap

   Courtesy of CHRYSLER GROUP, LLC
3. Install the instrument panel end cap (1).
4. Connect the negative battery cable.
