Gas Engine

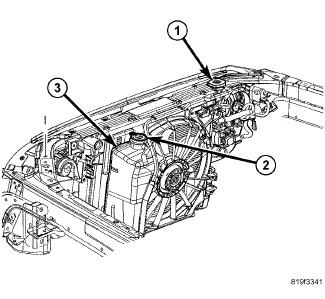

Fig 1: Coolant Recovery Bottle & Radiator Cap

Courtesy of CHRYSLER GROUP, LLC

1 - RADIATOR CAP

2 -COOLANT RECOVERY BOTTLE CAP

Position the tabs located on the coolant recovery container (3) into the slots on the fan shroud.
Reconnect the overflow hose onto the radiator filler neck.
Fill coolant recovery container (3). Refer to STANDARD PROCEDURE .
