Manifold Flow Valve: Removal: Removal

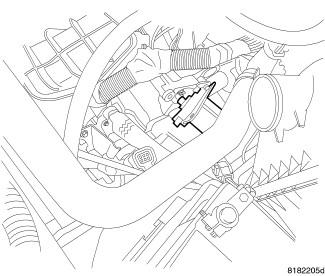

Fig 1: Manifold Flow Valve

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect negative battery cable.
2. Remove air tube.
   Fig 2: Manifold Flow Valve Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
3. Disconnect electrical connector (2).
4. Remove mounting bolts (1).

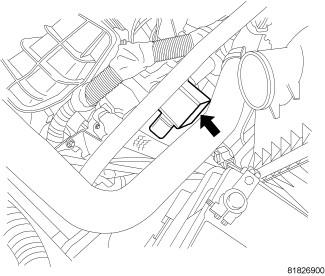

   Fig 3: Valve Location

   Courtesy of CHRYSLER GROUP, LLC
5. Remove valve.
