Module, Traffic: Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

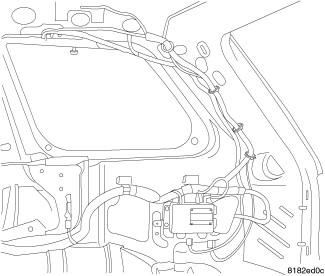

Fig 1: Removing/Installing Traffic Message Center Module
GC0118618Courtesy of CHRYSLER GROUP, LLC
  1. Install the module and fasteners.
  2. Connect the electrical connectors.
  3. Install the rear quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  4. Connect the battery negative cable.
