Jeep
›
2014
›
Cherokee Limited, 3.2L Eng VIN S, AWD
›
Repair and Diagnosis
›
Steering
›
Steering Control Systems
›
(Steering Control Module (SCM) - Electrical Diagnostics)
›
DTC Troubleshooting
›
U1008-00-Lin 1 Bus
›
Notes
U1008-00-Lin 1 Bus: Notes
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.

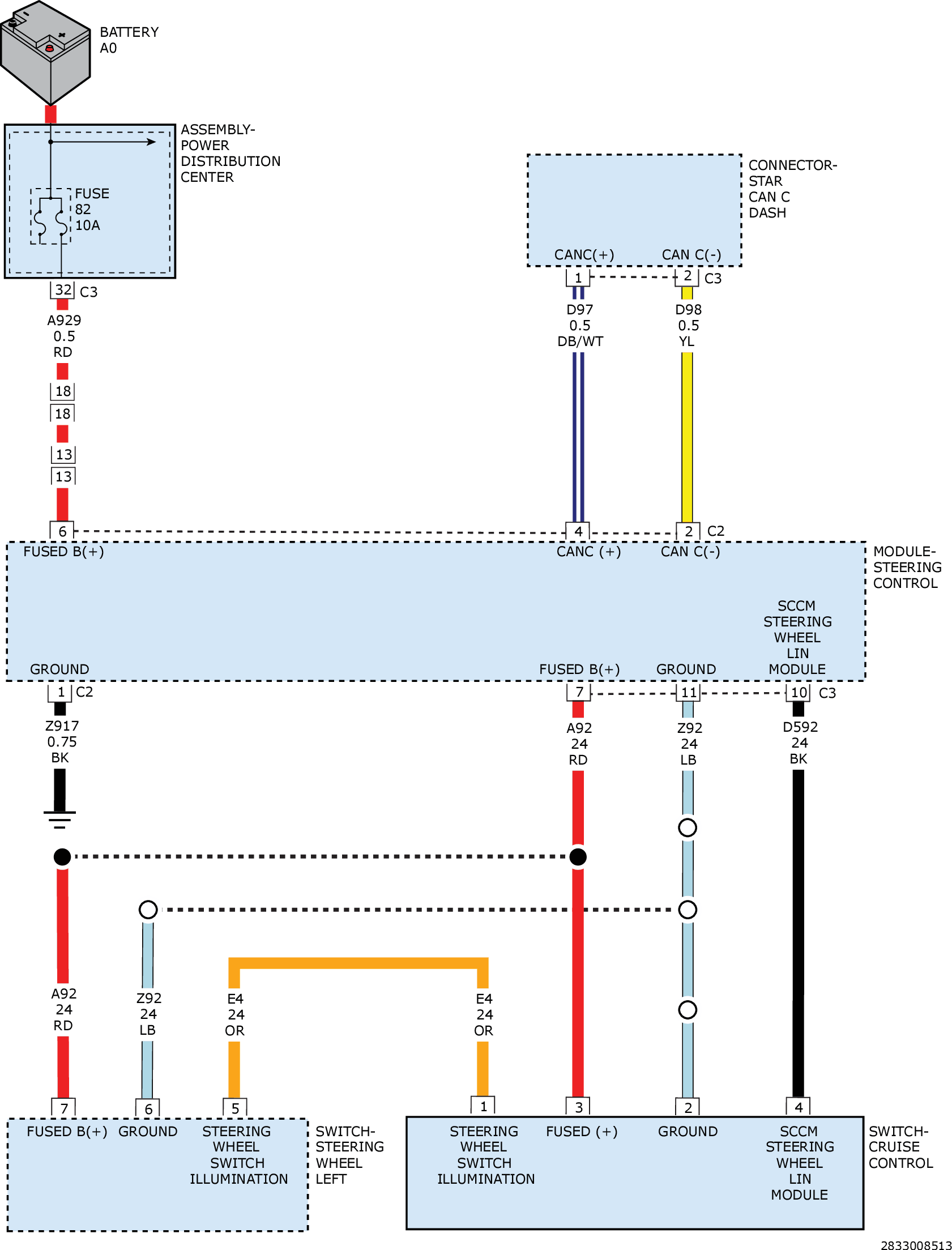

Fig 1: Steering Control Module - Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
