Module, Power Liftgate Control: Removal: Removal

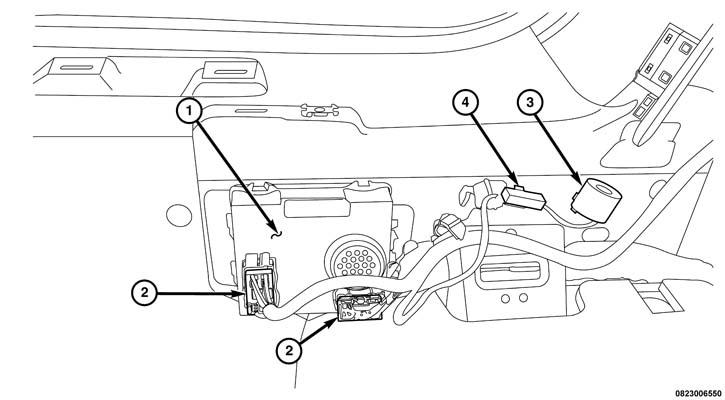

Fig 1: Power LiftGate Module (PLGM) & Harness Connectors

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the rear cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL .
3. Disconnect the two body wire harness (2) connectors from the PLGM connector receptacles.
4. Depress the latch feature integral to the left end of the PLGM housing and pull the top of the PLGM out and away from the mounting bracket.
5. Disengage the two tabs integral to the upper end of the PLGM housing from the slots.
6. Remove the PLGM (1) from the vehicle.
