B196C-00-Power Liftgate Close Direction Excessive Position Sensor Counts: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

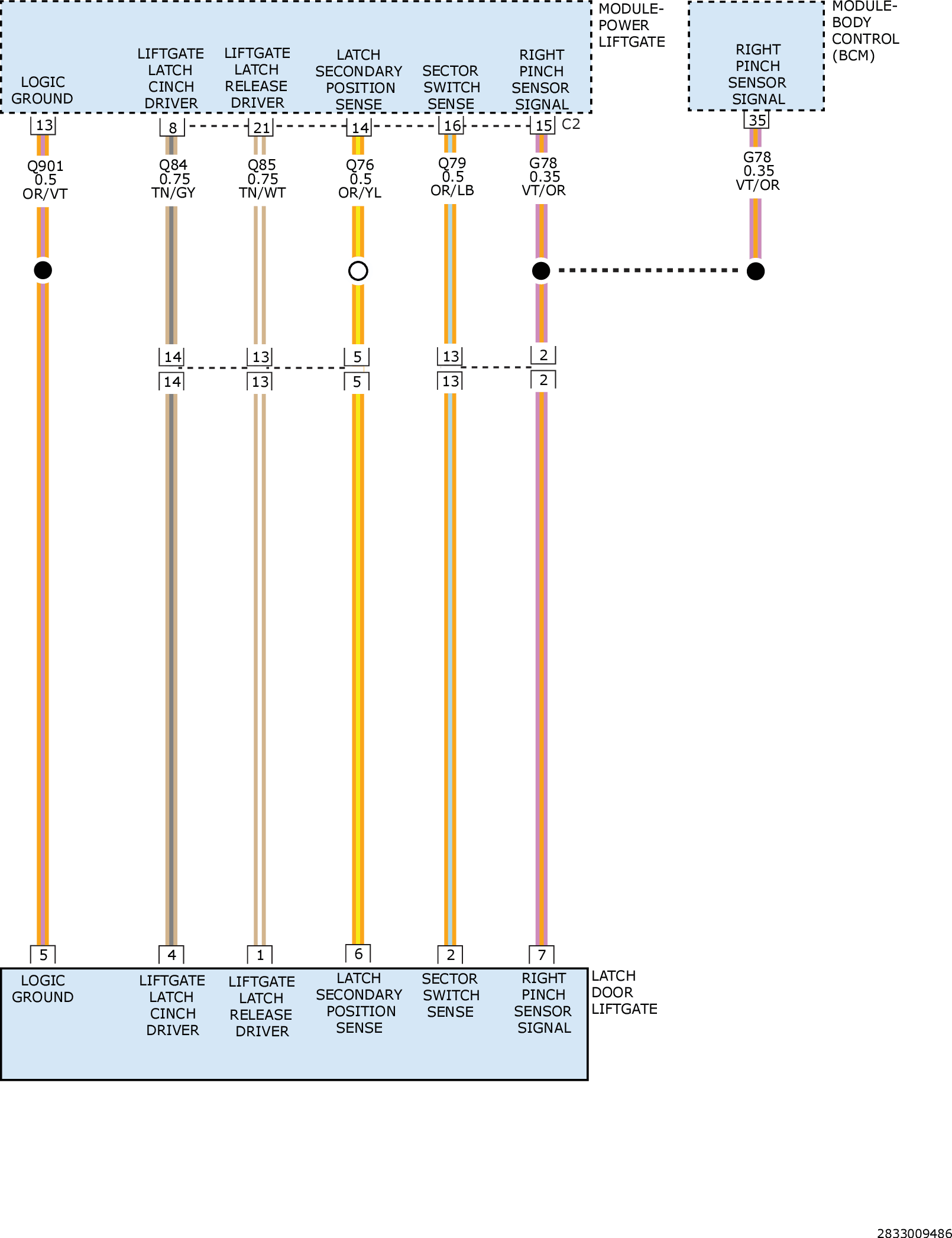

Fig 1: Power Liftgate Right Pinch Sensor Signal, Sector Switch Sense, Secondary Position Latch Sense, Driver & Ground Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
