Starting System (Service Information): Starter: Installation: 3.2L

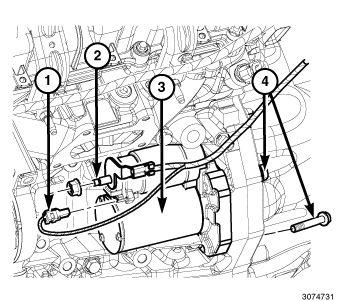

Fig 1: Starter Solenoid Electrical Connector, Solenoid Stud, Starter Mounting Bolts & Starter Assembly

Courtesy of CHRYSLER GROUP, LLC

1. Position the starter (3) inside the transmission.
2. Install the starter mounting bolts (4) and tighten to 55 N.m (41 ft. lbs.).
3. Connect the starter solenoid electrical connector (1) to starter solenoid terminal.
4. Install the battery cable and nut to the solenoid stud (2). Tighten the nut to 10 N.m (86 in. lbs.).
   Fig 2: Removing/Installing Catalytic Converter

   Courtesy of CHRYSLER GROUP, LLC
5. Install the catalytic converter (3). Refer to CONVERTER, CATALYTIC , INSTALLATION .
6. Lower the vehicle.
7. Connect the negative battery cable and tighten nut to 5 N.m (4.5 in. lbs.).
