Resonator, Exhaust: Installation: 2.4L

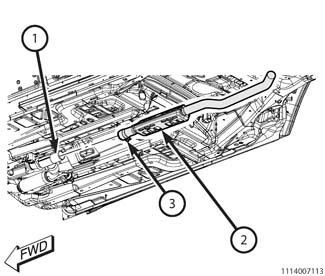

Fig 1: Resonator & Y-Pipe

Courtesy of CHRYSLER GROUP, LLC

1. Install the resonator (2) onto the front exhaust pipe outlet (1). Tighten the clamp (3) to 55 N.m (41 ft. lbs.).

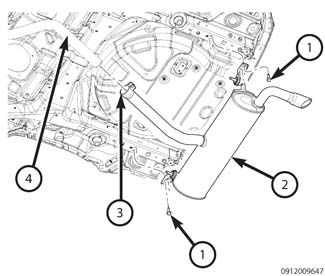

   Fig 2: Exhaust System - 2.4L

   Courtesy of CHRYSLER GROUP, LLC
2. Insert the resonator pipe (4) into the muffler (2). Tighten the clamp (3) to 55 N.m (41 ft. lbs.).
3. Start the engine and inspect for exhaust leaks.
4. Check for proper clearance between the exhaust and the surrounding components.
