Sensor, Oxygen: Removal: Removal

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).

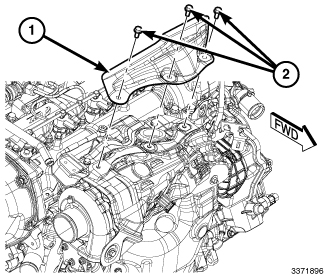

Fig 2: Upper Turbocharger Heat Shield & Mid Upper Turbocharger Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (2) and the upper turbocharger heat shield (1).

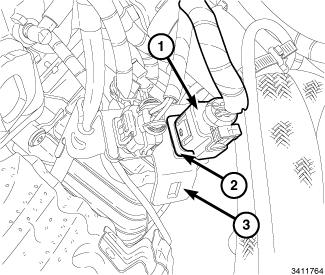

Fig 3: Oxygen Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the oxygen sensor wire harness connector (1) and remove the wire harness connector pick-tail (2) from support bracket (3).

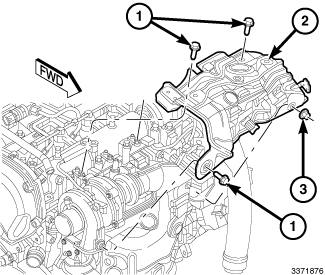

Fig 4: Turbocharger Heat Shield & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the exhaust temperature sensor wire from lower heat shield (1).
Remove the three bolts (1), one nut (4) and the mid upper turbocharger heat shield (1).

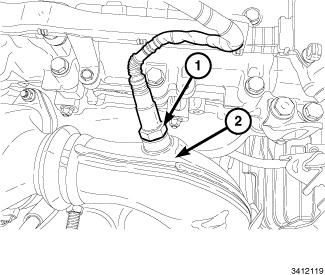

Fig 5: Oxygen Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the oxygen sensor (1).
